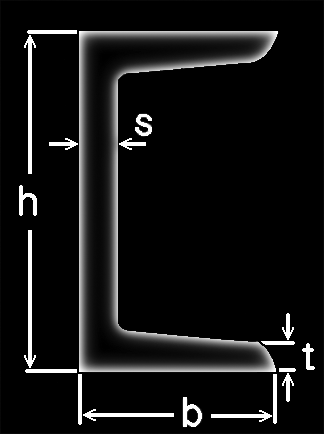

UPN	h	b	s	t		UPN	h	b	s	t
	mm	mm	mm	mm			mm	mm	mm	mm
30x15	30	15	4,0	4,5		160	160	65	7,5	10,5
40x20	40	20	5,0	5,5		180	180	70	8,0	11,0
40x35	40	35	5,0	7,0		200	200	75	8,5	11,5
50x25	50	25	5,0	6,0		220	220	80	9,0	12,5
50x38	50	38	5,0	7,0		240	240	85	9,5	13,0
60x30	60	30	6,0	6,0		260	260	90	10	14,0
65x42	65	42	5,5	7,5		280	280	95	10	15,0
80	80	45	6,0	8,0		300	300	100	10	16,0
100	100	50	6,0	8,5		320	320	100	14	17,5
120	120	55	7,0	9,0		350	350	100	14	16,0
140	140	60	7,0	10,0		400	400	110	14	18,0
